Travel Vision R7 flat antenna (with free storage bag)

The Travel Vision R7 Flat uses an innovative flat antenna and has an integrated Twin LNB.

The flat antenna bundles and absorbs the incoming satellite signal, after which it is amplified and forwarded to the connected satellite receiver or TV with built-in DVB-S tuner.

With a compact dish leaf, a good satellite reception is realized, which is comparable to an offset dish of 70 cm. Due to its compact design, the Travel Vision R7 Flat is easy to store and transport.

The difference between the R6 and the R7 lies in the built-in lithium battery in the control panel. The R7 is equipped with a lithium battery, with which you can align the antenna without other power supply connections. This takes an average of 3 minutes; fully charged, the battery lasts about 1 hour.

Specifications Travel Vision R7 satellite antenna

• Flat antenna dimensions: 515 x 515 mm
• Weight: 11.6 kg
• Battery life: +/- 1 hour
• 15m coaxial cable: 75 Ohm double shielded
• LNB with 2 outputs
• Adjustable skew adjustment
• 16 pre-programmed satellites
• Including 2 years warranty

Features Travel Vision R7 Flat satellite antenna

• With one press of a button, fully automatic alignment on the satellite of your choice
• Equipped with a unique removable and patented anti-theft control module
• The very latest technology in the field of satellite recognition (DVB-S2)
• GPS positioning system for quickly finding the satellite
• Twin LNB for connecting 2 satellite receivers or TVs with built-in DVB-S tuners
• Dutch-language illuminated control panel and extremely easy to use
• The R7 is fully produced in the Netherlands and only high-quality and solid materials are used, the R7 guarantees quality and durability
• 16 pre-programmed satellites in the favorites list
• Easy to connect with only one cable to your digital receiver
• A high-quality and very compact dish leaf equipped with modern technology
• Installation is not necessary, the R7 Flat is a mobile system and offers you optimal freedom and flexibility
• You can connect the R7 Flat to any random satellite receiver
• Easy to store and transport
• 2 years full warranty

Download here the latest firmware for the Travel Vision R7.

Footprint Astra 1 - Travel Vision R7 flat antenna

Footprint Astra 3 (Canal Digitaal / TV Vlaanderen) - Travel Vision R7 flat antenna

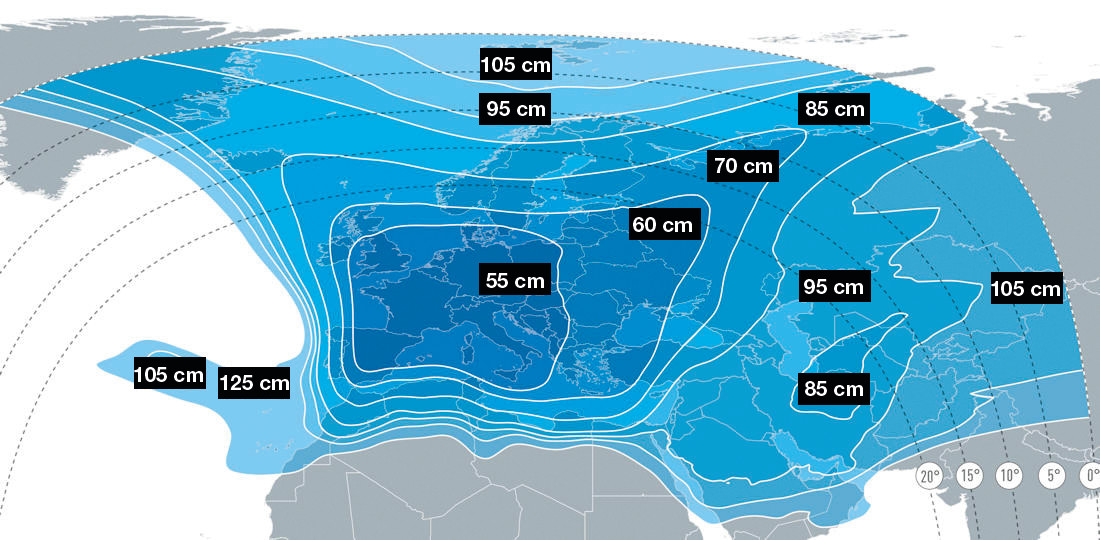

Footprint Eutelsat 9 (Joyne) - Travel Vision R7 flat antenna
