Router is not included!

Teltonika outdoor antenna with LTE, WiFi, GPS and Bluetooth support; suitable for use at the campsite or in the caravan or camper for setting up your own internet connection. Via the private WiFi network on the connected router, it is then possible to stream VOD services such as Netflix, Disney+, HBO max or Prime video.

IP67 rating - Water and dust-resistant for ultimate outdoor reliability
Omnidirectional - Designed for reliable signal coverage from every direction
Integrated mounting bracket - Quick and easy pole/mast mounting
Perfect router match - Compatible and designed for seamless integretion with the selected Teltonika routers (RUTX11 and RUTM11 series)

Technical data Teltonika Outdoor LTE/WI-FI/GPS/Bluetooth antenna - RUTX11 and RUTM11 routers

LTE antenna

• Frequency Range: 617 ~ 960, 1,700 ~ 2,700, 3,300 ~ 4,300 MHz
• Polarisation: Vertical
• Radiation pattern type: Omnidirectional
• Gain: Max 4.5 dBi
• V.S.W.R: < 2.50
• Impedance: 50 Ω
• Connector type and count: 2x SMA male

BT antenna

• Frequency Range: 2,200 ~ 2,700 MHz
• Polarisation: Vertical
• Gain: 2 dBi
• V.S.W.R: < 2.00
• Impedance: 50 Ω
• Connector type and count: 1x RP-SMA male

 Please notice: the Bluetooth antenna is not utilised when used with the RUTM11.

WI-FI antenna

• Frequency Range: 2,400 ~ 2,500, 4,700 ~ 6,000 MHz
• Polarisation: Vertical
• Radiation pattern type: Omnidirectional
• Gain: Max 7.5 dBi
• V.S.W.R: < 2.00
• Impedance: 50 Ω
• Connector type and count: 2x RP-SMA male

GNSS antenna

•  Frequency Range: 1,560 ~ 1,610 MHz
• Polarisation: RHCP
• Gain: 28 dBi
• V.S.W.R: < 2.00
• Impedance: 50 Ω
• Connector type and count: 1x SMA male
• Current consumption: 2.5 - 6.5 mA
• Supply voltage: 2.5 - 6.5 VDC

Mechanical / Environmental

• Cable: 5x RG316, 1x RG174
• Operating Temperature: -40 °C up to 75 °C
• Mounting Method: Wall, ceiling, mast
• IP rating: IP67
• Weight: 1,500 g
• RoHS compliant: ✓

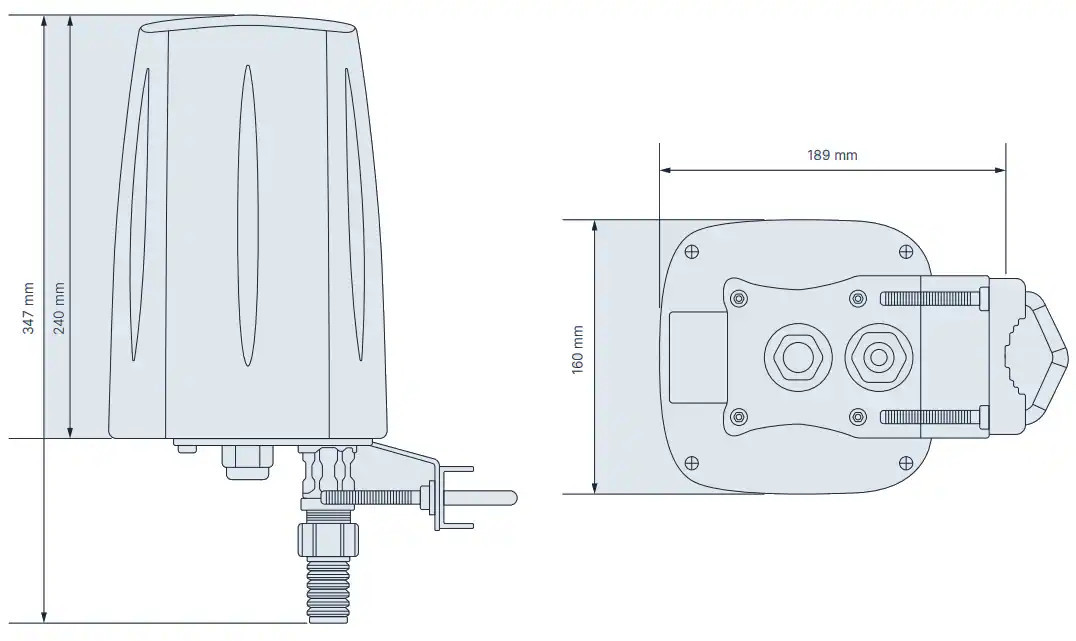

Dimensions Teltonika Outdoor LTE/WI-FI/GPS/Bluetooth antenna - RUTX11 and RUTM11 routers
