With its 60 cm dish, the Travel Vision G6 satellite dish is suitable for reception of the Astra 3 satellite, the satellite where Canal Digitaal and TV Vlaanderen are broadcast via. The Travel Vision G6 is equipped with a so-called Quad connection, so that 4 cabins of your yacht can simultaneously watch satellite TV, independently of each other. Expanding to multiple cabins or cabins is also possible, by using a so-called multiswitch. A total of 10 satellites are pre-programmed into the Travel Vision G6. The G6 can be connected with "only" 1 single coax cable between the controller and the antenna.

ABSS Active Beam Scanning System & Gyro

The G6 is equipped with the ABSS Active Beam Scanning system, which quickly locates the desired satellite - even while sailing. Together with gyro technology, this ensures a very accurate tracking behavior for even seagoing vessels. Even while sailing, this makes it possible to watch TV on board, in HD quality.

Autoskew & GPS

Thanks to the automatically rotating LNB (Autoskew) and GPS, the Travel Vision G6 also has reception in the fringes of the satellite range.

Update

The Travel Vision G6 is equipped with a control unit (ACU) in which the desired track frequencies can be adjusted by yourself if necessary.

Key features Travel Vision G6:

• Suitable for yachts and seagoing vessels
• Pre-programmed for selection of 10 satellites
• Easy to operate via Dutch display
• Quad LNB, standard suitable for 4 satellite receivers
• 60 cm dish for reception of HD channels on Astra 3 23,5
• DVB-S2 (QPSK & 8PSK) satellite recognition
• Gyro and GPS sensors for accurate tracking
• Autoskew LNB rotating with GPS and movement of the antenna
• Works on single coax cable from controller to antenna
• 2 years warranty on parts
• IP 55 protection

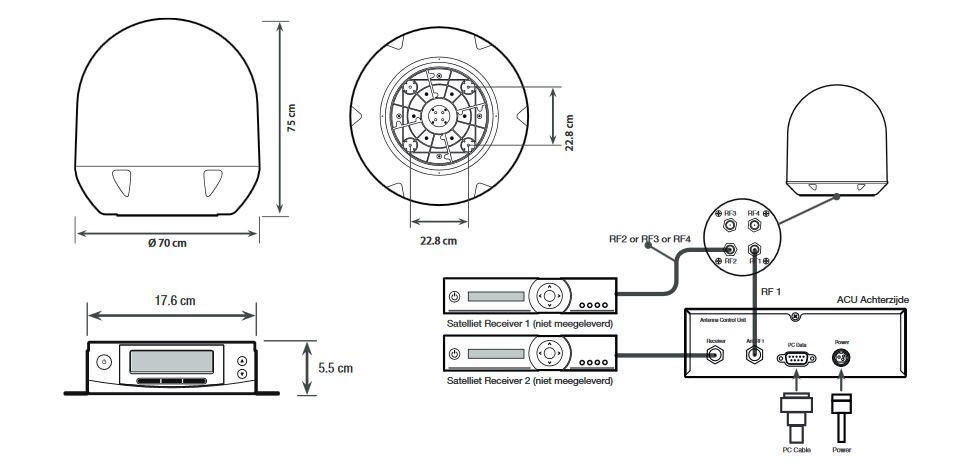

Specifications Travel Vision G6

• Saucer diameter: 60 cm
• Dome diameter: 70 cm
• Dome height: 74 cm
• Weight: 16 kg
• Power supply: 9.5V ~ 36V DC
• Power: Typ, 30W, Max 50 W.
• Approval: IP 55 and CE
• Minimum EIRP: 47 dBW.
• Frequency: KU (10.7 GHz ~ 12.75 GHz)
• AZ Range: 680°
• EL Range: 0°~90°
• Roll: 50°/Sec
• Pitch: 50°/Sec
• GPS: NMEA 0183
• Coaxial cable 75 Ohm ( H125 )

ACU

• Dimensions (L x W x H): 230 x 226 x 55 mm

• Weight: 1.1 kg
