Alfa Network AOA-4G-8M 4G/LTE antenna
Alfa Network AOA-4G-8M 4G/LTE antenna
€54.95
€45.41
Quick delivery
- Free shipment NL / BE (orders above EUR 50.00)
- 30 days withdrawal period
- Pick-up at store in Nieuwegein (NL) is possible
- Ordered before 16.00 hours, often same day shipped
Product description
The Alfa Network AOA-4G-8M is an omni-directional outdoor antenna that can be used with the Alfa Network Tube-U4G. The antenna has a fiberglass housing, offers 8 dBi gain and has an N-male port. This 4G omni antenna is suitable for outdoor use.
Technical Specifications Alfa Network AOA-4G-8M antenna
- Frequency range:
- 698-960 MHz
- 1.710-2,700 MHz
- Gain: 6/8 dBi
- VSWR: < 1.5

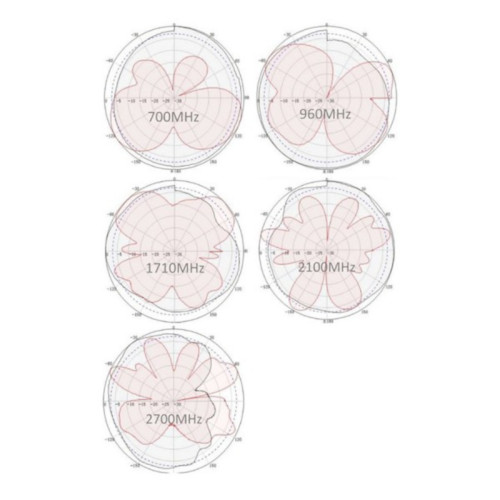

- Radiation:
- Omnidirectional
- Horizontal beamwidth: 360 °
- Vertical beam width: 35 °
- Maximum input power: 100 W
- Impedance: 50 Ohm
- Connector: N-Male
- Mounting: Mast (Ø 30-50 mm)
- Rated wind speed: 60 m/s
- Operating temperature: -40 to 70 ° C
- Dimensions: 600 mm (Ø 20 mm)
- Weight: 650 grams
| SKU | AOA-4G-8M |
|---|---|
| Categorie | Communicatie |
| Brand | Alfa Network |
